0879-2G2R-Y9 Stacked RJ45 Magnetic LPJ27081AFNL 2X2 Port Connector RJ45 W / LED
| 0879-2G2R-Y9 | Stacked RJ45 | 2x2 MAG45 | LPJ27081AFNL |
♦ Designing Model: 【0879-2G2R-Y9 】
♦ 0879-2G2R-Y9 Stacked Rj45 Connectors / Stacked Rj45 Modular jack
♦ 2x2 0879-2G2R-Y9 Rj45 Gigabit Magjack
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3, IEEE802.3u, IEEE802.3ab requirement.
♦ Mass Production Model:【LPJ27081AFNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
| LINK-PP Part Number | LPJ27081AFNL |
| Designing Model | 0879-2G2R-Y9 |
| Cores per Port | 4 |
| LED Option | GREEN/GREEN |
| Latch | TAB UP / DOWN |
| Number of Ports | 2X2 |
| PCB Mount Angle | SIDE ENTRY |

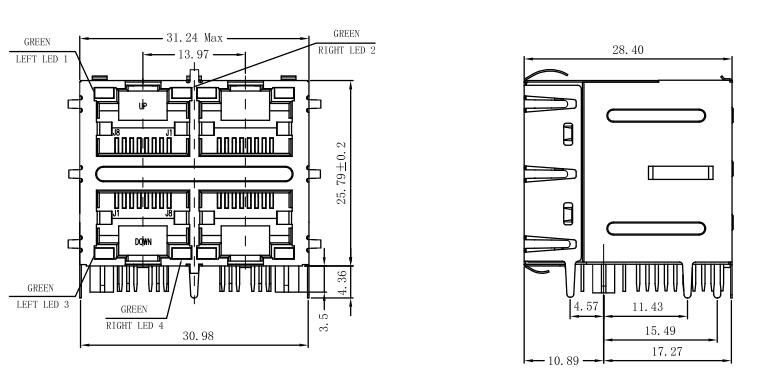

| Package Height (mm) | 25.79 |
| Package Length (mm) | 28.40 |
| Package Width (mm) | 31.24 |
| Shield EMI Tabs | WITH |
| Speed | 10/100 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Applications
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Advantage
Certificated by SGS , ISO9001:2008 , UL ,REACH and CE
OEM for Tyco
Cooperate with Ti, Intel, Cisco, Samsung, Fluke, Arduino ,Hp , etc
Passing the Fluke Tester Entirely
High Quality, Shortest Delivery Time
Competitive Price, Perfect Packing and Best After-Sale Service
Get 80% Off From DHL, UPS ,Fedex,TNT
QUALITY IS OUR CULTURE !
WE THINK OUR PRODUCTS WILL GIVE YOU AN EDGE OVER YOU COMPETITORS !
