1-1840578-9 Low Profile RJ45 Magjack PoE 1X4 Commercial Grade

Name: 118405789 Low Profile RJ45 Magjack PoE 1X4 Commercial Grade
Brand: LINK-PP
Price: 1.1 USD

Brand Name : LINK-PP

Model Number : 1-1840578-9

Certification : RoHS Compliant

Place of Origin : HuiZhou, China

MOQ : 1pcs，Free samples

Price : $1.1-$4.3

Payment Terms : TT, NET30/60/90 Days, Western Union

Supply Ability : 600K/Month

Delivery Time : 3-5 days

Packaging Details : Tape & Reel (TR)

Series : RJ45 Integrated Connector Module

PoE support : Yes

Number of Ports : 1X4

Height Profile : Low

Speed : 10/100BASE-T

Length : 58.24mm

Width : 33.02mm

Height : 12.25mm

Contact Now

Overview

The 1-1840578-9 is a quad-port (1X4) 10/100BASE-T MagJack with Tab Up configuration and low profile design. It features Green/Green LED indicators and supports Power over Ethernet (PoE) with 15W power capability. This model operates in a commercial temperature range of 0°C to +70°C. It includes EMI tabs for improved electromagnetic interference protection, uses a through-hole mounting method, and is RoHS compliant.

Technical Specification

Parameter	Specification
Part Number	1-1840578-9
Series	Integrated RJ45 Connectors
Number of Ports	1x4 (Quad Port)
Ethernet Speed	10/100BASE-T
Tab Direction	Up
Mounting Type	Through-Hole Mount
Mounting Orientation	Right-Angle
PoE Support	PoE, up to 15W
PoE Current	350 mA DC Max
LED Indicators	Green/Orange (GO/G)
Shielding	Shielded with EMI Fingers
Operating Temperature	0°C to +70°C
Turns Ratio	TX: 1:1, RX: 1:1
Open Circuit Inductance	350 µH
Dimensions (L x W x H)	58.24 mm x 33.02 mm x 12.25 mm
Compliance	RoHS Compliant

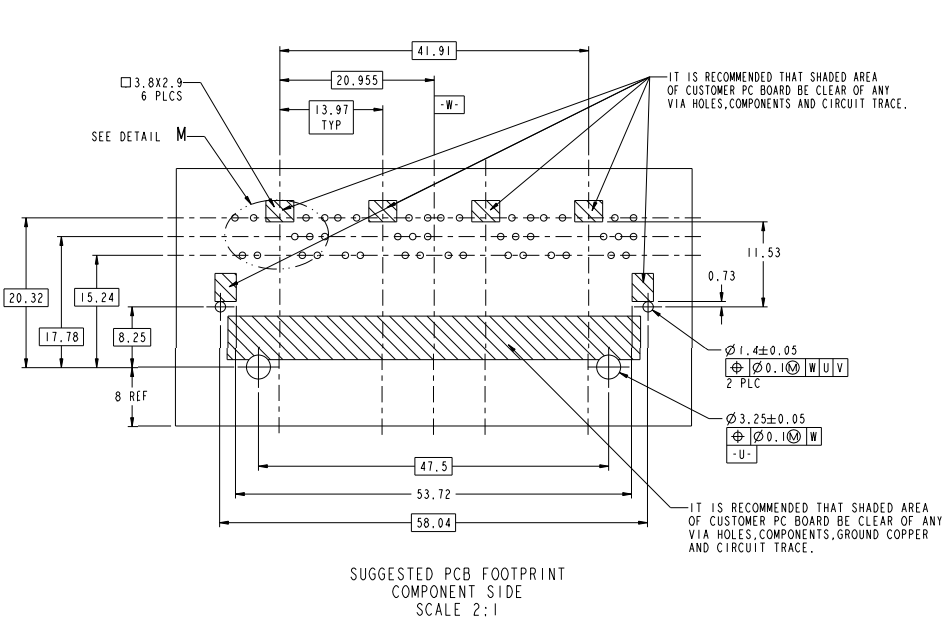

Drawing

1-1840578-9 Low Profile RJ45 Magjack PoE 1X4 Commercial Grade
